Coffee Capsule Filling Packaging Solutions that are worry-free!
Factory with ISO certification! CE certification! Guaranteed for 24 months!
As a leading manufacturer of custom-designed, innovative solutions for the coffee packaging sector, Food-Packaging-Machine.com has a wide range of dedicated cutting and wrapping lines. Our automatic lines, for example, can also be designed according to the needs of the client. The coffee packaging machinery we supply includes: drip coffee bag packing machines, coffee stick packing machines, coffee capsule filling and sealing machines, vertical form filling and sealing machines, high-precision weighing systems, and loading systems that produce attractive and robust packages, ideal for a wide variety of products.
With a unique Italian design concept, our coffee capsule filling sealing machine can be used for filling and sealing capsules on rotary tables or multilanes, and combines automatic filling, sorting, nitrogen gas flushing, and sealing into a single unit. Different types of capsules can be adapted to various shapes and sizes, including Nespresso, K-cups, Lavazza, Dolce gusto, and so on. Tea, coffee, infusions, barley, or soluble products are packed into these bags and sealed with heat-sealing materials.
With the fast changing needs of the market, we have accumulated the broadest knowledge, and have assembled the most comprehensive technical FAQ library for coffee packaging in the world, helping customers optimize their investments and ensuring ongoing assistance and technological developments to maintain their competitive advantage.
| Item | coffee powder filling machine/coffee nespresso capsules/k cup filling machine | ||||
|---|---|---|---|---|---|
| Model | NC-4/KC-4 | NC-6/KC-6 | NC-8/KC-8 | NC-10/KC-10 | NC-12/KC-12 |
| Capacity | 3000-4000cups/h | 4000-5000cups/h | 5000-6000cups/h | 6000-7000cups/h | 7000-8000cups/h |
| Filling Capacity | 5-30ml | 5-30ml | 5-30ml | 5-30ml | 5-30ml |
| Total Power | 4KW | 4.5KW | 5KW | 5.5KW | 6KW |
| Air Consumption | 0.65 cubic meters/min | 0.68 cubic meters/min | 0.70 cubic meters/min | 0.73 cubic meters/min | 0.78 cubic meters/min |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Temperature Range | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ | 0-300℃ |
| Machine Weight | 800KG | 900KG | 950KG | 1000KG | 1100KG |
| Size | 3500*800*1750 | 3500*1100*1750 | 3900*800*1750 | 3900*1100*1750 | 3900*1300*1750 |

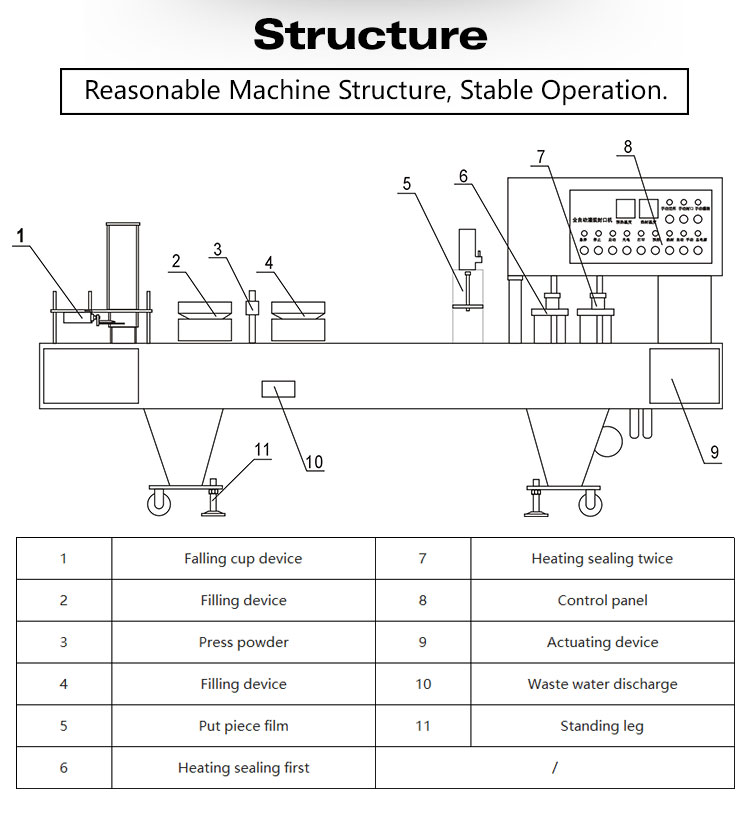

It is an automatic high-speed capsule filling and sealing machine for coffee capsules. There is an automatic operation for drop cups, filling, placing the film, printing dates, and twice sealing to out. We use famous brands for all the electrical and pneumatic components (these can also be customized to meet customer requirements), which are high quality and last a long time. This is mainly used in the packaging of coffee powder, milk powder, rice, wheat, and so on.
Features:
1. The production rate can be adjusted automatically, simple and safe operation, increasing productivity, reducing labor costs.
2. The whole machine has an advanced design, a reasonable structure, and a reliable performance.
3. Filling accuracy is ensured by photocell eye calibration.
4. There is no rough edge or imperfection along the sealing edges.
5. It is possible to adjust the sealing pressure twice during the sealing process. It can be sealed according to the customer’s requirements for easy tear and not easy tear, which shows a higher level of human design.
6. Depending on the customer’s needs, other auxiliary functions can be added to the machine.
| Item | Automatic aluminum film Nespresso coffee capsule filling sealing machine coffee pod packaging machine |
|---|---|
| Model | Rotary Coffee Capsule Filling Sealing Machine |
| Product Capacity | 600-800 Cups Per Hour |
| The Cup Capacity | 5-10ML |
| Tank Capacity | 30L |
| Heating Power | 1KW |
| Gas Cnsumption | 0.6 Cubic Meters/Min |
| Power Source | 220V, 50HZ |
| Installation Dimensions | 1250*1250*1650MM |
| Weight | 250KG |
It is suitable for filling various types of coffee capsules (such as Nespresso, Dolce and K-cup). Capsule cup functions include automatic filling, automatic drop cup, automatic suction film, automatic cup, automatic sealing, etc. With high sealing strength, good sealing performance, low failure rate, and a small footprint, this machine uses the Japanese ohm long programmable logic controller, pneumatic control element, intelligent digital display temperature control system, which is the preferred product for enterprise automation production.

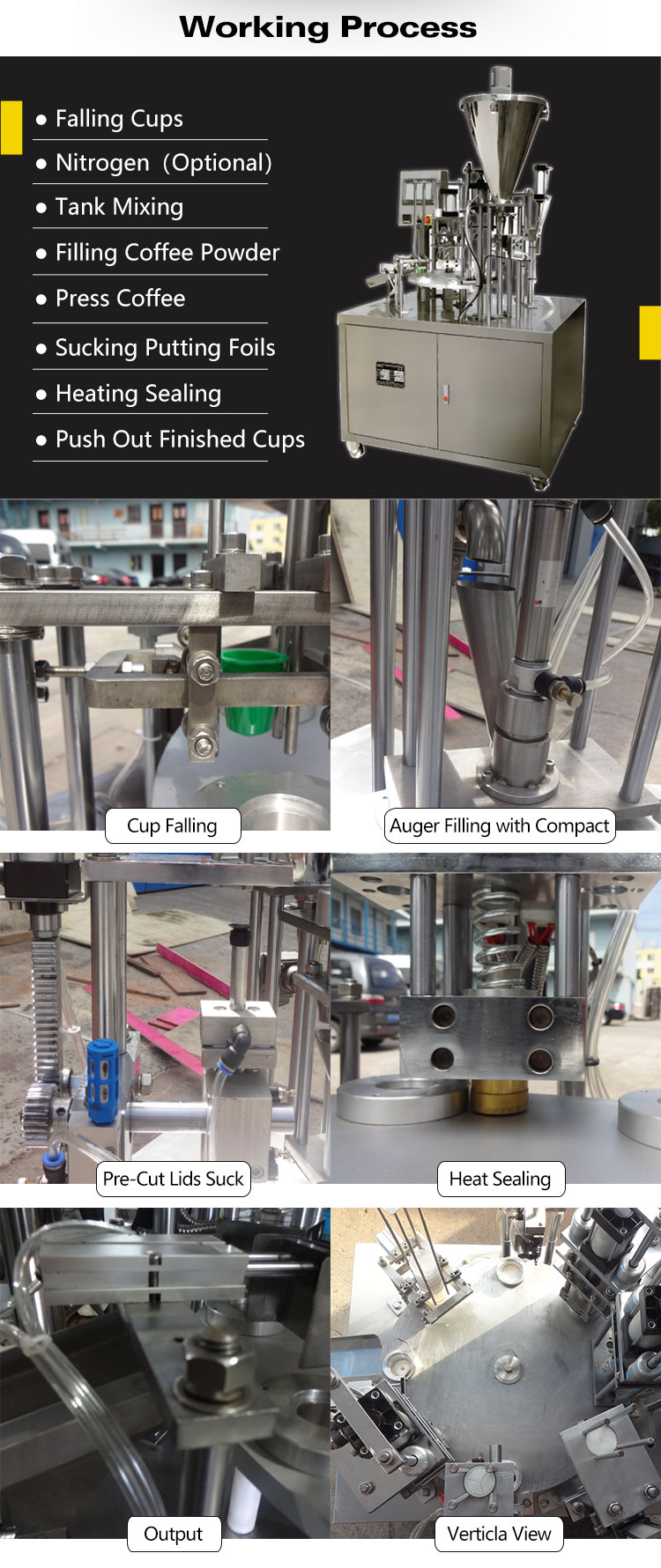

Features:
1. Falling Cups: Cups drop down one by one automatically.
2. Nitrogen: Flush nitrogen before filling coffee powder. (Nitrogen generator need configuration by customer)
3. Tank Mixing: Mixing coffee powder.
4. Filling Coffee Powder: Auger filling type.
5. Press Coffee: Compact coffee tight after filling.
6. Suck Putting Lids: Vacuum arm suck and put foils on cups for cup sealing.
7. Heating Sealing: Push-out finished cups to a platform.
8. Pushout Finished Cups: Push-out finished cups to a platform.
Product Application
This latest high speed caffitaly coffee capsule filling sealing machine is suitable for Nespresso , K-cup , Espresso, Dolce Gusto, and Caffitaly all kinds of coffee capsules. There are a lot of uses for it, including making coffee powder, milk powder, tea powder, etc. The speed can be 40- 50 per minute, and it is easy to replace the model if you are using different coffee capsules.
Main Features
Touch screen Schneider brand
Capsule loading : Each line (hole) can store 100 dolce gusto empty capsules, and it can be customized to store more capsules.
Omorn detect : no capsules, no filling, no sealing
Filling : Schneider Cylinder drive servo auger filling, accuracy is +/-0.15g
Sealing : copper sealing head, 100% perfect sealing
Output : sucking or catching, the conveyor can be automatic
Optioanal function
Please contact us if you have any more customized requirements for Latest high speed Dolce gusto coffee capsule filling sealing machine.
| Machine model | KL-200A |
|---|---|
| Voltage (V/Hz) | 220v AC / 50Hz customized |
| Filling range | 5-50g，According to the size provided by the user |
| Cup diameter | According to cups provided by the user |
| Sealing speed | 800-1500c/h |
| Filling Precision | ±1% |
| Cup &film material | Preformed PP. cups, laminated film, such as, PET/Al/PE, etc. |
| Machine material | stainless steel |
| Outline dimension | 1200*1200*1600（L×W×H）(mm) |
| Heated hopper | 20-30L |
| Additional configuration | Coding printer/Gas-filled device/Bag conecting device/Punch device/Easy to tear gap device |
Small, full automatic machine with the most complete functions. Touch control operation panel, PLC control system, sealing film with temperature control system. Stainless steel and aluminum alloy make up the entire machine, firm and smooth, never rusting. The finished product is automatically output to the entire column.
Suitable for liquids with good fluidity. There are various liquids that can be used as sauces, detergents, shampoos, tomato sauces, ketchups, milk, hand sanitizers, bath lotions, vegetable oils, soap liquids, and other liquids.
| Item name | coffee capsule filling sealing machine |
|---|---|
| Type | rotary |
| Model No. | HSP-1N |
| Filling range | 5-20 grams |
| Filling accurracy | 0.1g |
| Application | K-cup, Nespresso, Dolce Gusto, Lavazza point , Lavazza blue, Pod, Upshhot, granule, powder |
| Speed | 3000-3500 cups per hour |
| Hopper capacity | 1 liter/ 2.5 liter |
| Air pressure gas consumption | ≥0.8Mpa/0.1㎡ |
| Sealing foil | pre-cut lid or roll foil film |
| Control system | PCL+ touchscreen |
| Voltage | AC220V/380V, 50HZ/ 60HZ, custom |
| Power | 2.5 KW |
| Displayer | 7 inch touchscreent |
| Dimension | 1950mm(L)*1750mm(W)*2200mm(H) |
| Weight | 710KG |
| Packaging weight | 760KG |
For a wide range of applications, rotary machines can be equipped with individual process modules. It can handle both injected and thermoformed capsules of different sizes, and it can be applied to coffee, milk powder, tea, instant powder, yogurt, etc.
Applicable capsule: compatible Dolce Gusto, K cup, Lavazza blue and ponit, Pod, Upshot, etc.
The coffee filling and sealing machine can sometimes be difficult to move. It is very heavy and bulky. As a result, it requires a very large floor space to be placed.
The biggest weakness of coffee capsule pods is their inability to preserve the aroma and freshness of coffee. Customers often complain that coffee pods may not be as fresh as other forms of coffee. As a result, coffee pod machines will be limited in their application.
The popularity of coffee capsule filling machine means that such machine must have some merits deserved to mention. Now, let’s dive right in.
Due to the powerful parts or components, coffee pod machines can last for a long time. In addition, coffee capsule filling machines are easy to maintain and less expensive to operate. The only thing you should pay attention to is the certification of lubrication of the moving parts. The machine should be cleaned and lubricated regularly.
A coffee capsule filling machine has the greatest advantage of being easy to use. Generally, such machines are designed for people without special barista training. Currently, most coffee capsule filling machines are fully automatic, much more advanced than traditional filling and sealing machines. As a result, it is easy to use.
Packing coffee by hand is boring and time-consuming. Being flesh, we humans become weak and insufficient from high-pressured and rotating work. With the advent of the coffee capsule machine, workers are freed from tedious and otiose labor. With its strong steel construction, this huge guy will save you a lot of time and effort.
It is possible for the machine to pack coffee according to practical needs despite the great difference in packaging requirements. A simple click on the screen can change the sizes and types of packaging.
Coffee capsule filling and sealing machines comply with international safety standards. Additionally, they have passed simulated environment tests with various adverse elements. As a result, there can be no doubt about the safety of the machine.
Food-Packaging-Machine.com is the leading food packaging machine B2B maketplace in China, here you can find best thousands of Coffee Capsule Filling and Sealing Machine manufacturers, suppliers & factories, all of them are verified by our professional team in China, we make sure that they are real and best Coffee Capsule Filling and Sealing Machine manufacturers in China, contact us for the best food packaging machine manufacturers lists.
Designed to fill and seal coffee capsules (or other powder products such as tea powder, cocoa powder, etc. ), the coffee capsule filling and sealing machine is a multifunctional machine. This coffee capsules sealing machine is designed specifically for filling and sealing cups with rolled film or pre-cut lids (or other liquid products such as fruit juice, water, granules, powders, etc.). Plastic cups, and other cups can be filled automatically by this coffee cup filling machine.
This Coffee Capsule Filling And Sealing Machine is suitable for various types of granules, powders, and liquids. There are many types of food materials, such as coffee, milk powder, milk powder, tea, tea, instant powder, yogurt, and many others.
Applicable capsule: Compatible Dolce gusto, Nespresso, Lavazza blue or point, Pod, K-CUP, K-shot, One CUP
Your trustable Coffee Capsule Filling And Sealing Machine Manufacturer in China. Joygoal specializes in food machinery. Our company integrates research, development, manufacture, installation, and maintenance. Our company has advanced equipment, vast experience, highly qualified scientific researchers, as well as professional after-sales staff.
