Spouted Pouch Filling and Capping Machine

The range of products we offer includes automatic spout pouch filling and capping machines, standup pouch filling machines, and semiautomatic spout pouch liquid filling capping machines. This machine can be used for filling and capping soy milk pouches, jelly pouches, seasonings, mineral water pouches, yoghurt pouches, juice pouches, edible oils, ice cream pouches, and other products.

Full automatic spout pouch liquid filling and capping machine, spout pouch liquid detergent filling capping machine, spout pouch milk filling capping machine, spout pouch jelly filling capping machine, spout pouch fruit juice filling capping machine, spout pouch seasoning packing machine, spout pouch soybean milk filling capping machine, spout pouch laundry detergent filling capping machine, spout pouch lubricant oil filling capping machine, spout pouch edible oil filling capping machine.

Play Video about Automatic Double head plastic spouted pouch honey water milk oil bag filling screw capping machine

Plastic spouted pouch honey water milk oil bag filling screw capping machine

Model	ZLD-2A
Filling heads	2
Capacity	1200-2000 bags/hour
Filling volume	50-500ml(customizable 1L 2L 3L)
Error	±2%
Power	380V/HZ
Air pressure	0.7 m³/min
Weight	1200kg

Used for a variety of products, including jelly, milk, butter, fruit juices, paste, chemical liquids, and water.
It is highly reliable, easy to operate, versatile, and performs well.
The system becomes more stable and reliable by importing control elements from Schneider, Mitsubishi, Ormon, and Siemens.

Optional features

The cap feeder feeds caps into the ZLD-2A automatic spout pouch filling and capping machine
System for air cleaning
To keep production safe, open the dust cover door detector
Stainless steel throughout the entire machine
ZLD-2A CIP system
Date or lot number printing machine
A stainless steel pump feeds product to the ZLD-2A automatic
Finished pouches are transported on a conveyor belt
Compressed air is supplied to the ZLD-2A by an air compressor
There are more spare parts available
A nitrogen generator is needed to supply nitrogen to the ZLD-2A

Support

User’s manual in detail
Shows how to adjust the speed of the machine, how to adjust the volume of filling, how to adjust the vibrating strength, how to adjust the capping strength, and how to maintain it.
Video showing the installation and operation of the machine
Response time after sale is less than 6 hours
……
Design and manufacturing experience of more than 8 years
Direct factory and manufacturer sales at competitive prices
English and Chinese touch screens
The vibrator runs automatically when there is no pouch, no filling, no cap, and no cap stop detections
Keeping production safe with two emergency stop buttons
You will be served by professional designers and workers
UV sterilization lamp, dust cover
Before this machine is released from storage, it undergoes a strict inspection
We use food grade 304# stainless steel for our spout pouch filling and capping machines
Printing – printing machine required, optional feature
Pouch loading
Vacuum – optional feature
No pouch detection
Filling – adopt with leak-proof nozzles
Spout cleaning
Nitrogen flushing – optional feature
Feeding and inserting cap
Capping
No cap detection
Transport – conveyor belt required, optional feature
Discharging

Play Video

Liquid detergent juice sauce paste capping and spout pouch filling machine

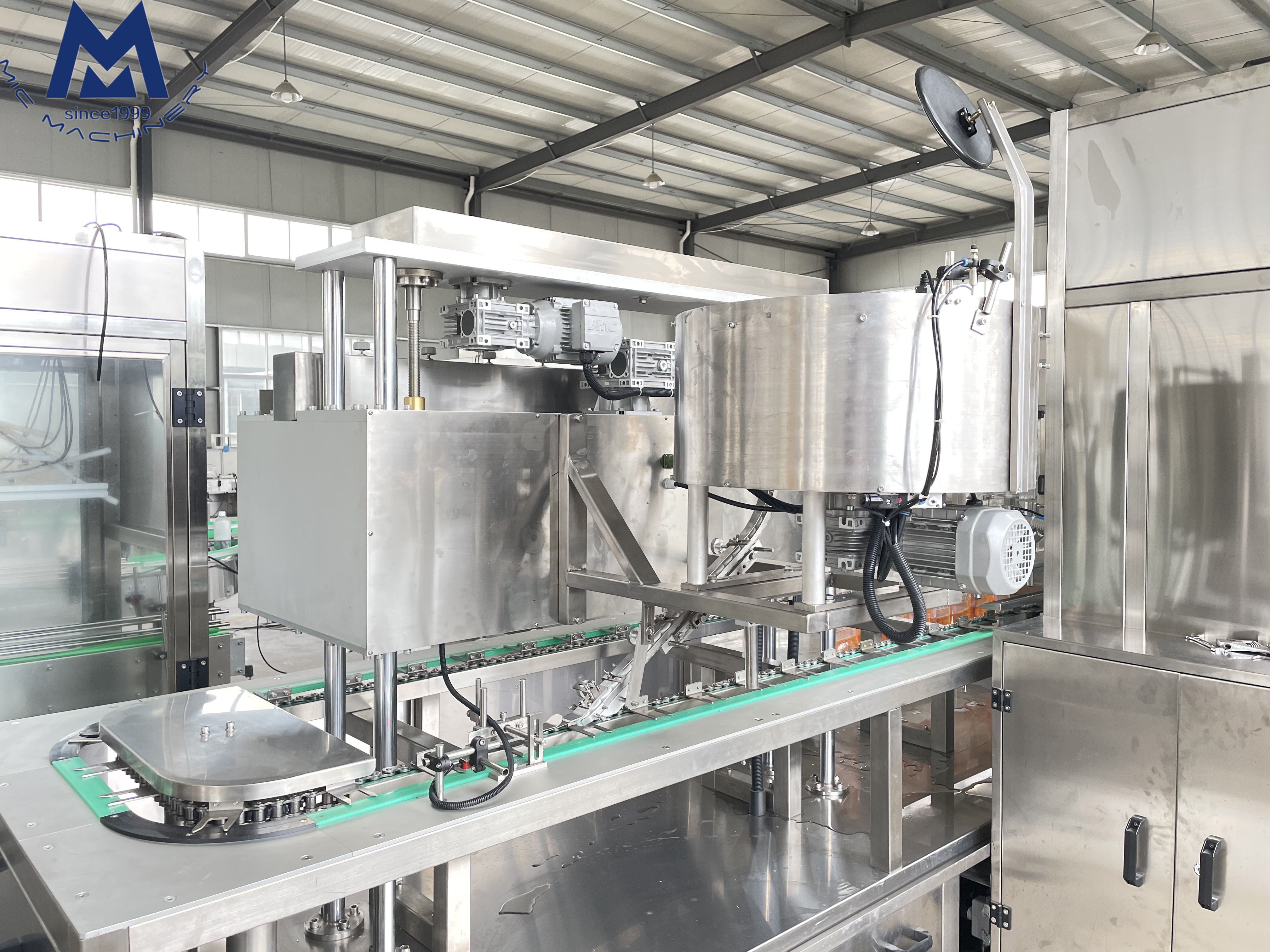

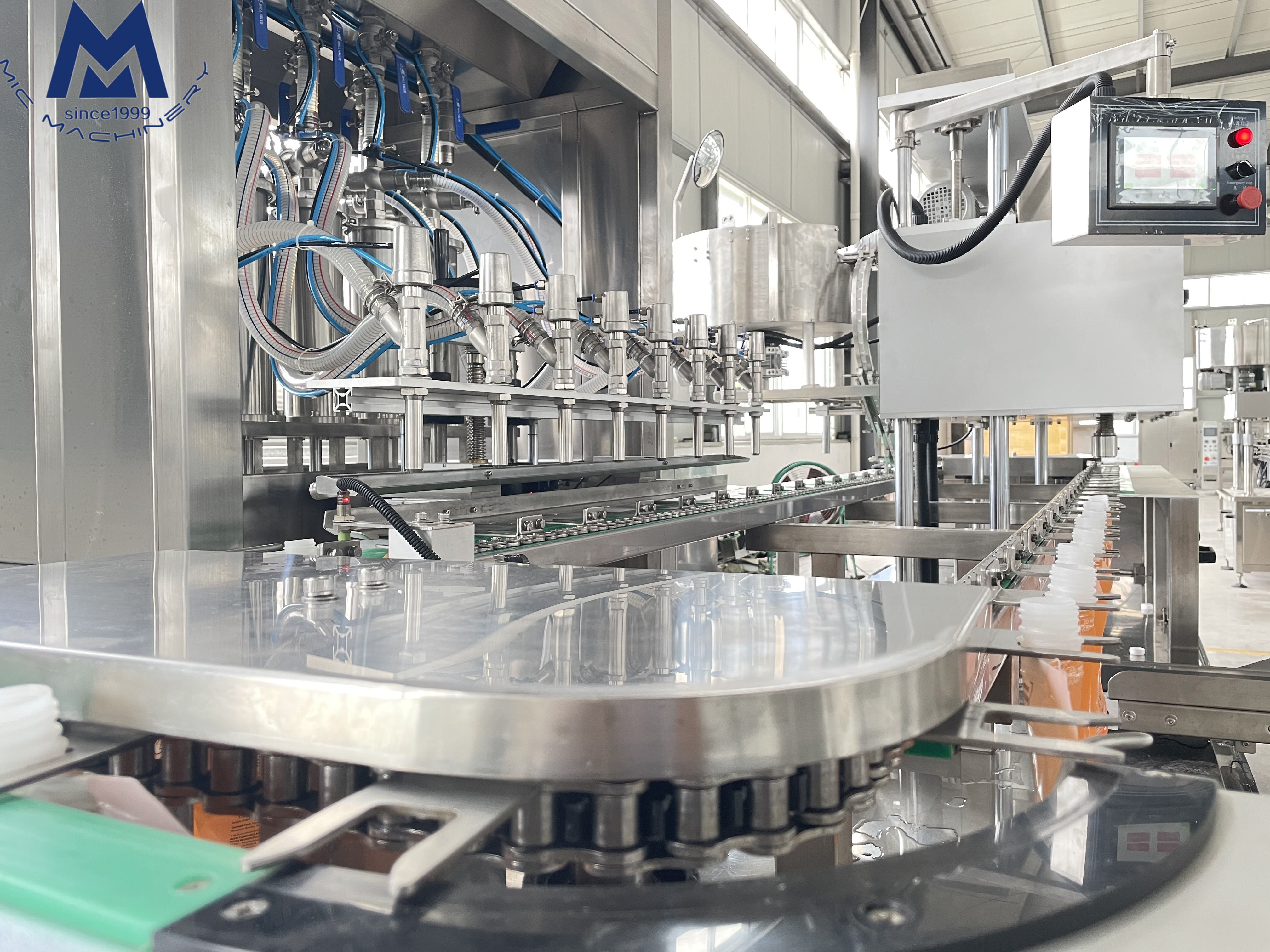

Spout Nozzle Liquid Detergent Pouch Filling and Capping Machine with Automatic Servo Control

1. The machine function is ①Automatic 8 heads piston pump filling. ②Automatic detect the empty pouches ③Automatic screw capping with 8 capping heads ④Automatic sorting and loading the caps ⑤No pouch no filling and no capping.

2. This machine is mainly designed for filling and capping plastic spout pouch nozzles all-in-one, and it can fill and cap water agent and high viscosity materials as well.

3. Touch screen man-machine interface with PLC control. To ensure the stability of filling, the double ball screw lifts to control piston rod movement. This ensures the accuracy of filling and sets light, machine, electricity, and gas all in one. All-in-one machines have this kind of convenient operation. Besides being dependable and stable, it is also highly efficient and adaptable.

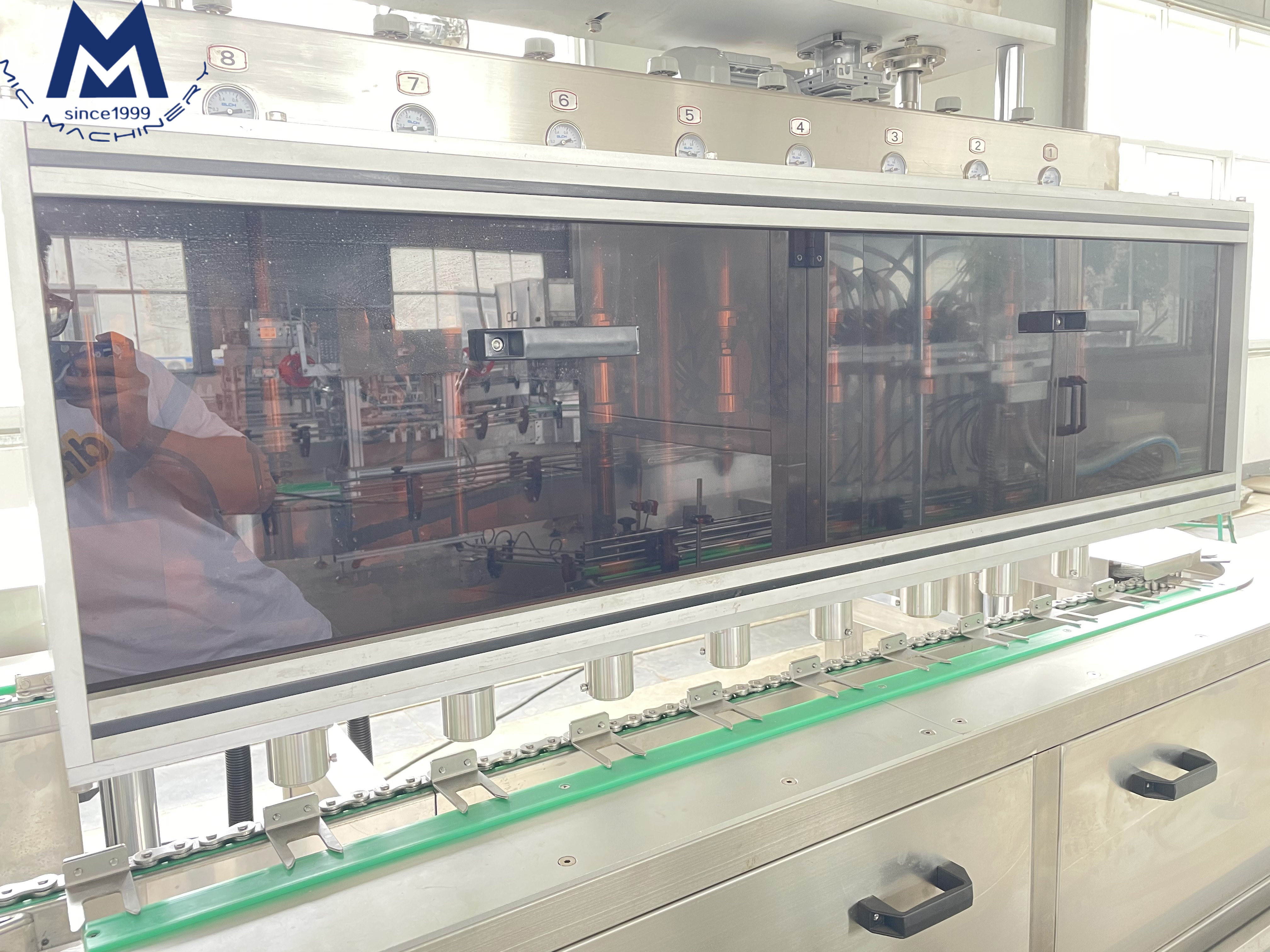

Manually Insert the Spout Pouch on the Station

The operator needs to insert the empty spout pouch on the station one by one.

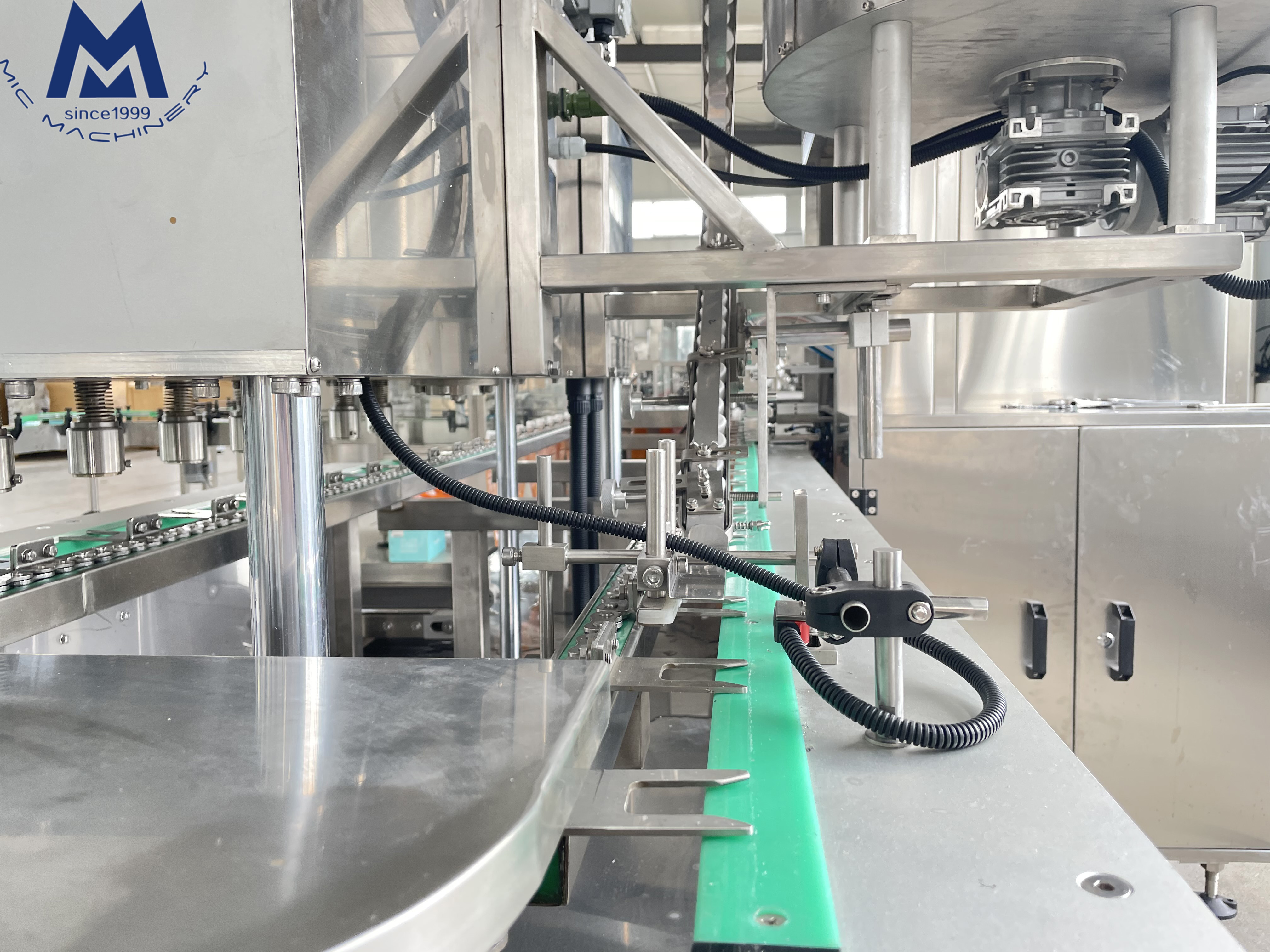

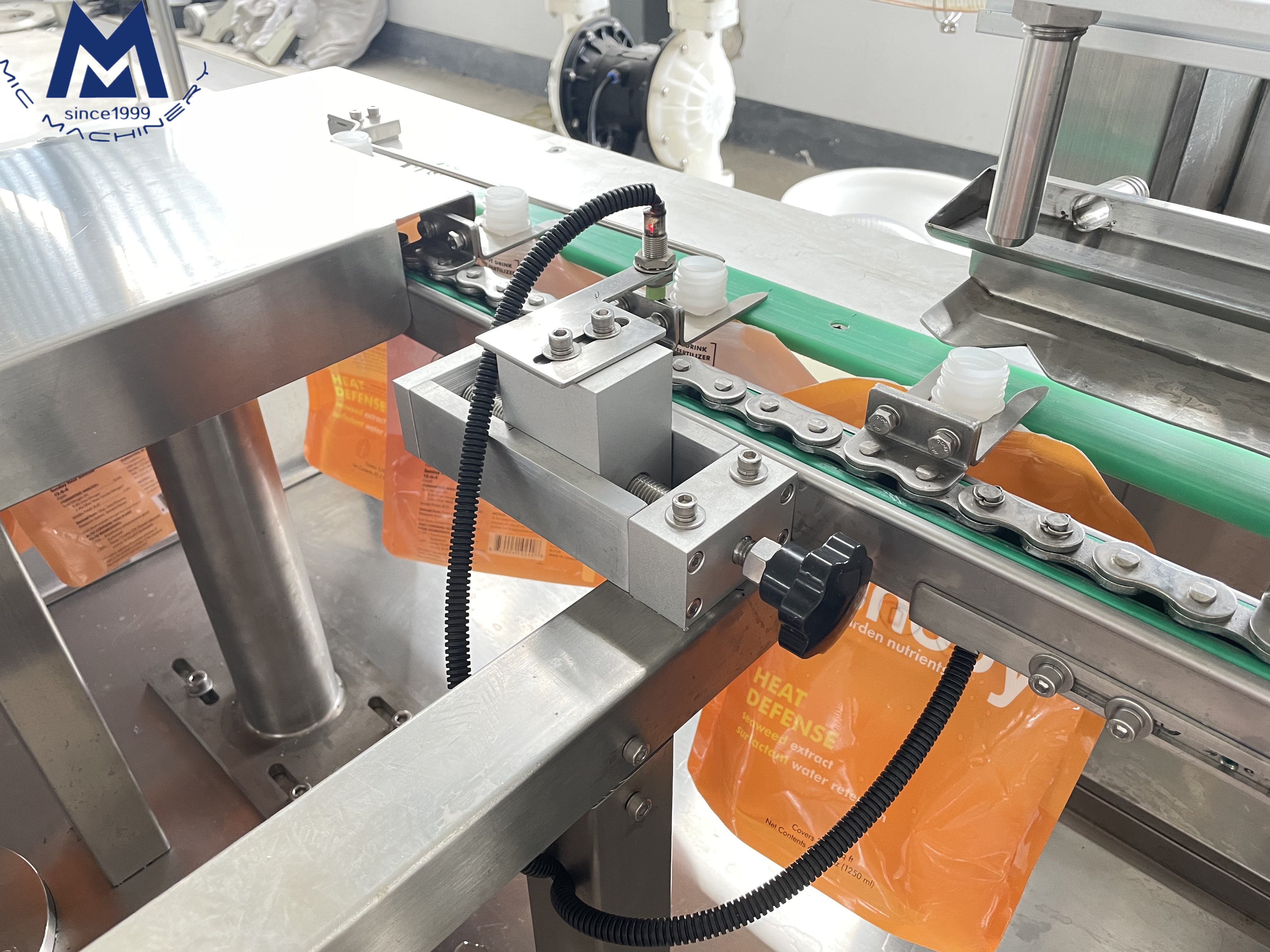

Automatic Counting Photoelectric Detection

When the photoelectric detect bag passed, the filling signal will be sent to the filling machine through this sensor. So, it can achieve the function of no pouch no filling, in order to save the liquid material and keep the cleaning. At the same time, the production quantity will be counted in the touch screen, in order to count the number of production conveniently.

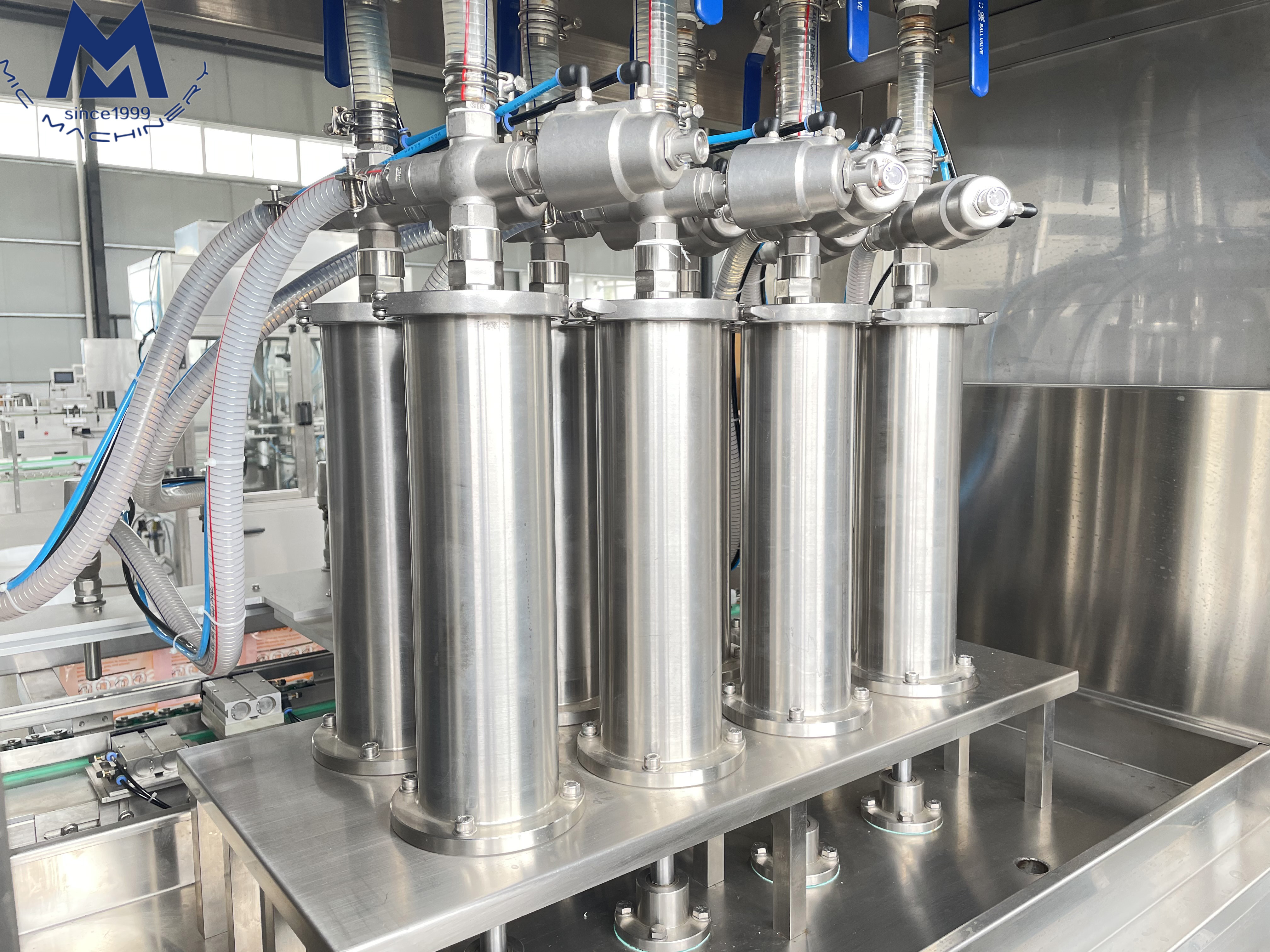

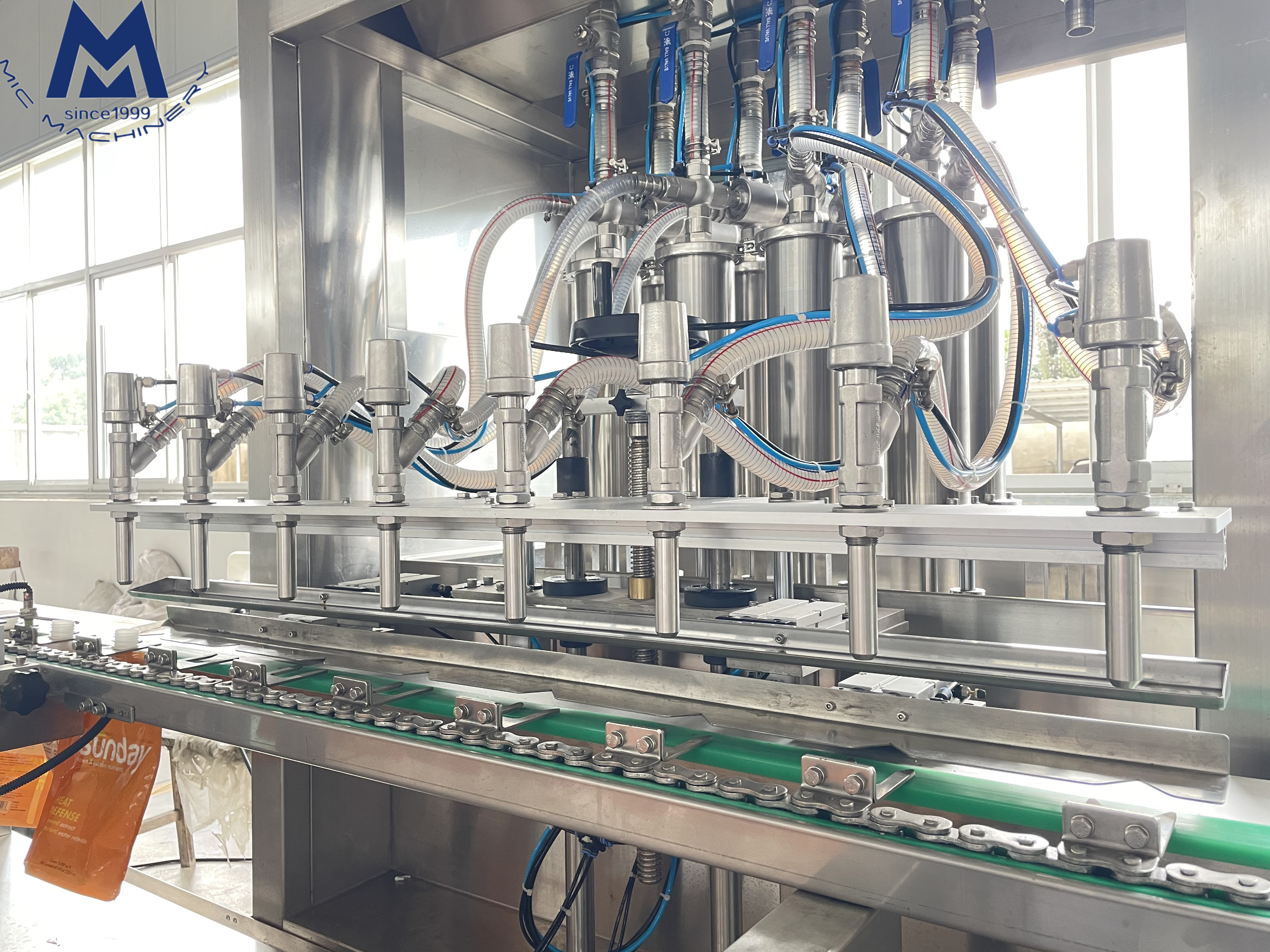

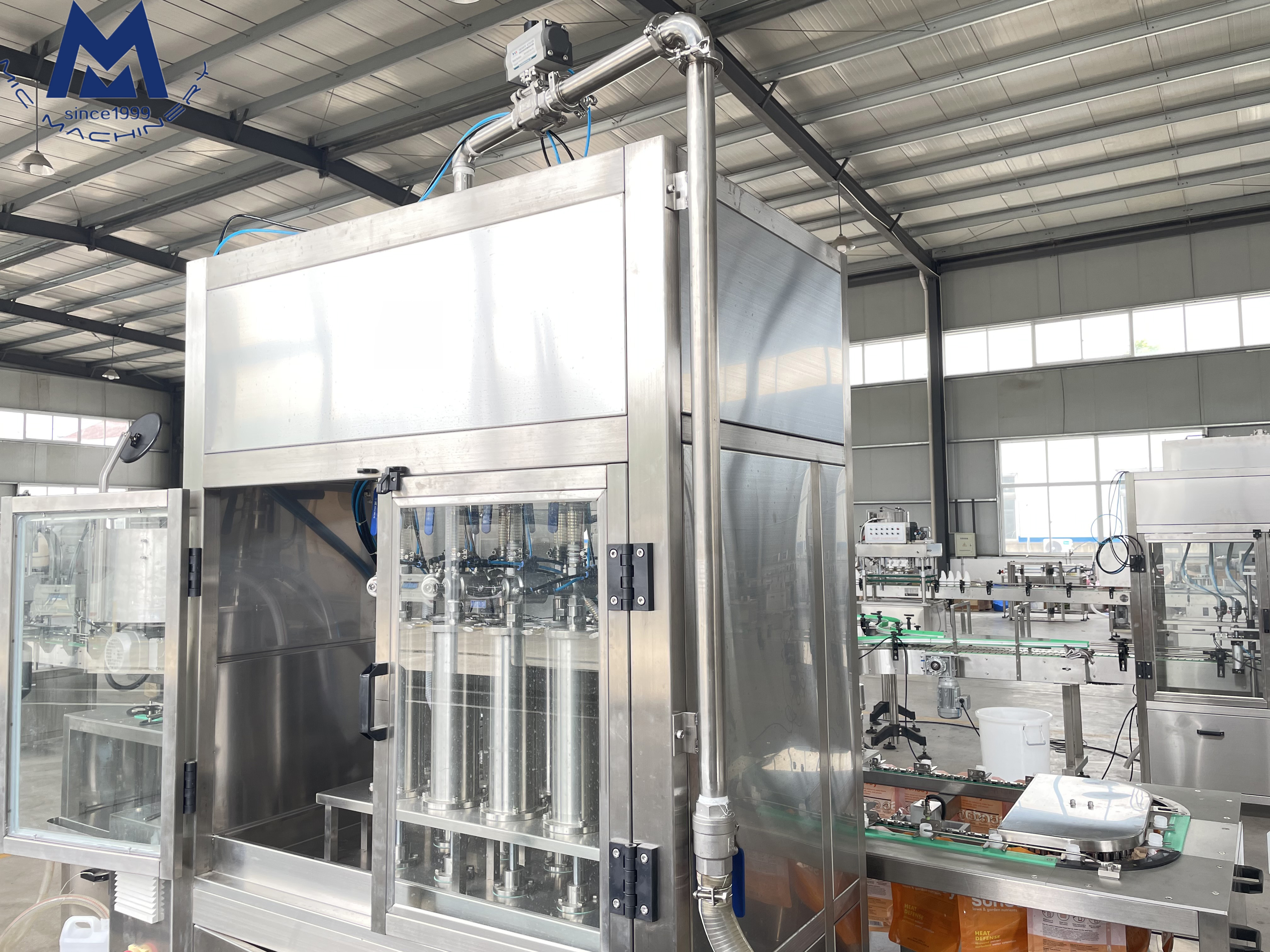

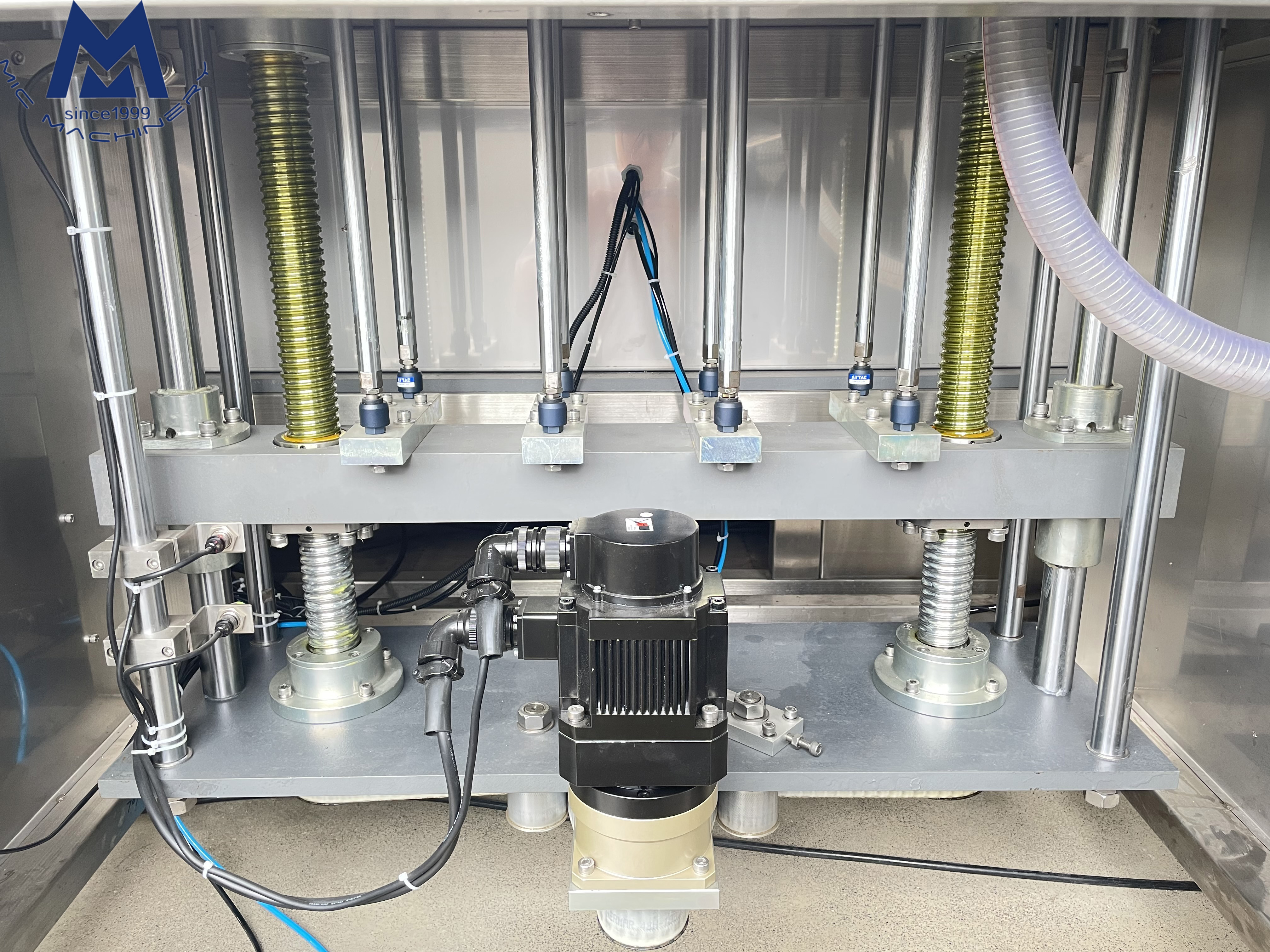

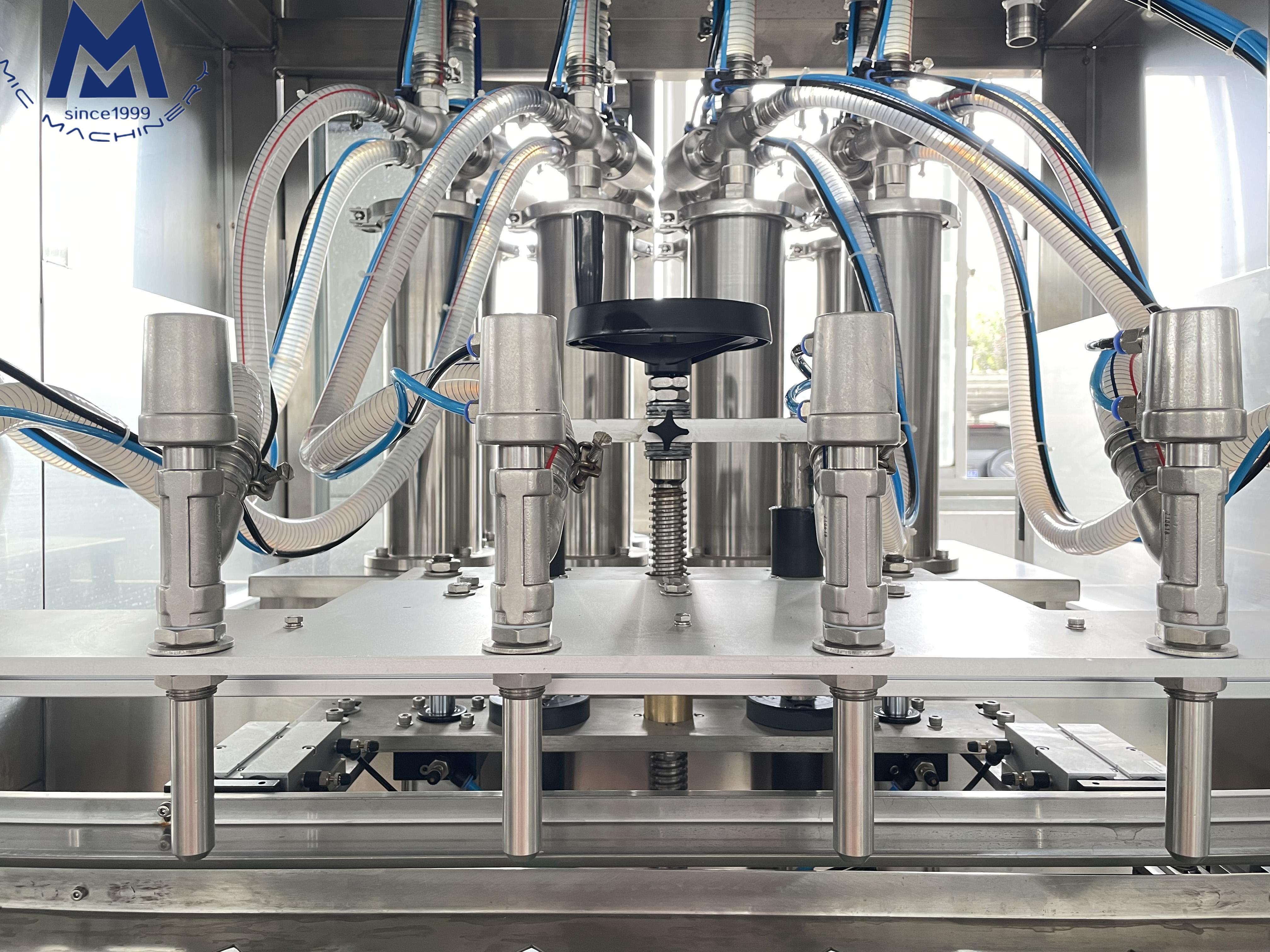

Automatic High Accuracy Piston Filling System

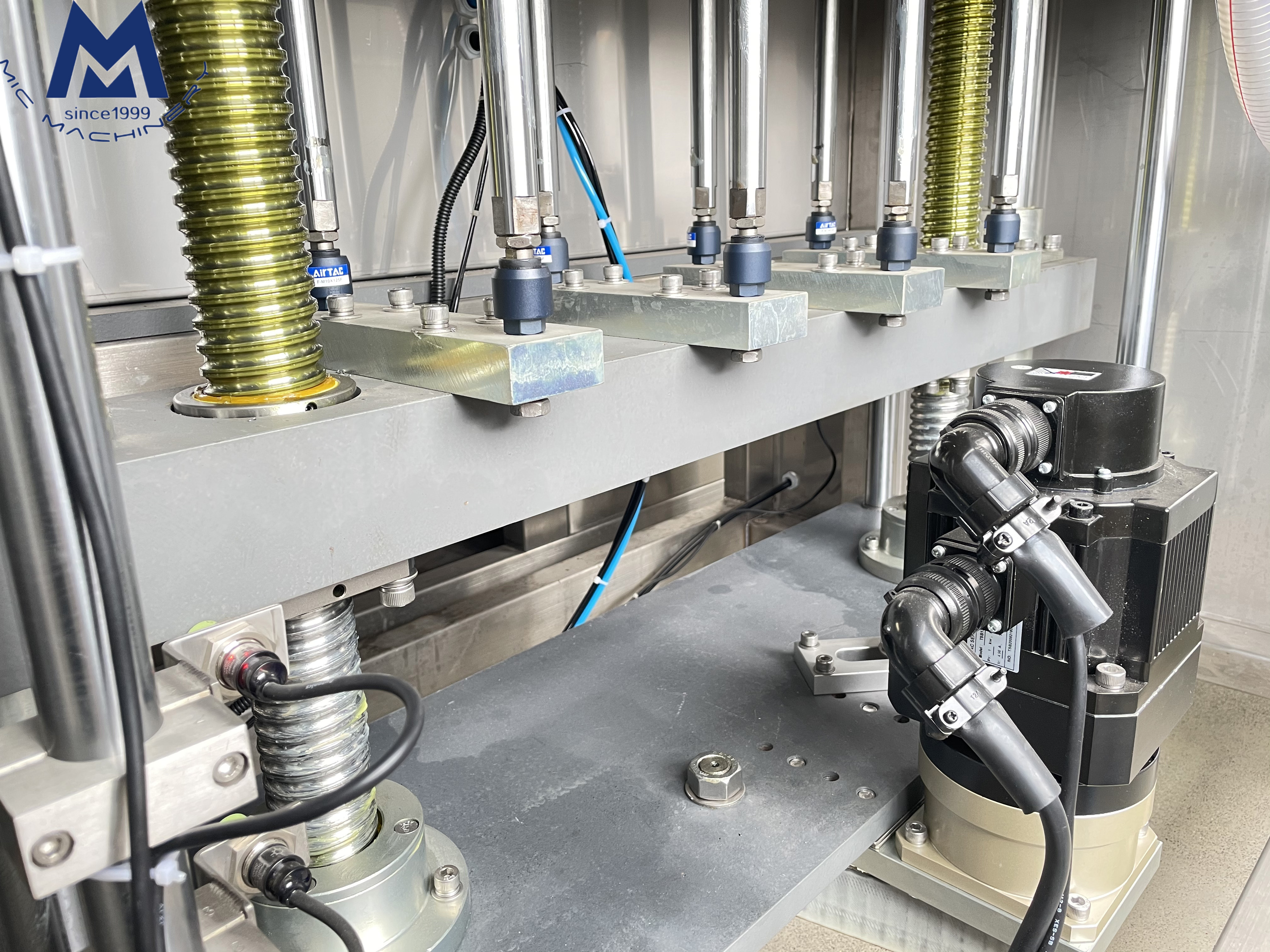

The high accuracy piston filling system adopts adopts servo motor to drive the ball screw to drive the piston cylinder to do piston movement, thus the filling error is controlled within 3 ‰, in order to meet the requirements of high filling precision. The filling volume can be setted on the touch screen for easy operation. Especially design anti-leak filling head, and the height of filling head can be adjusted through the hand wheel.

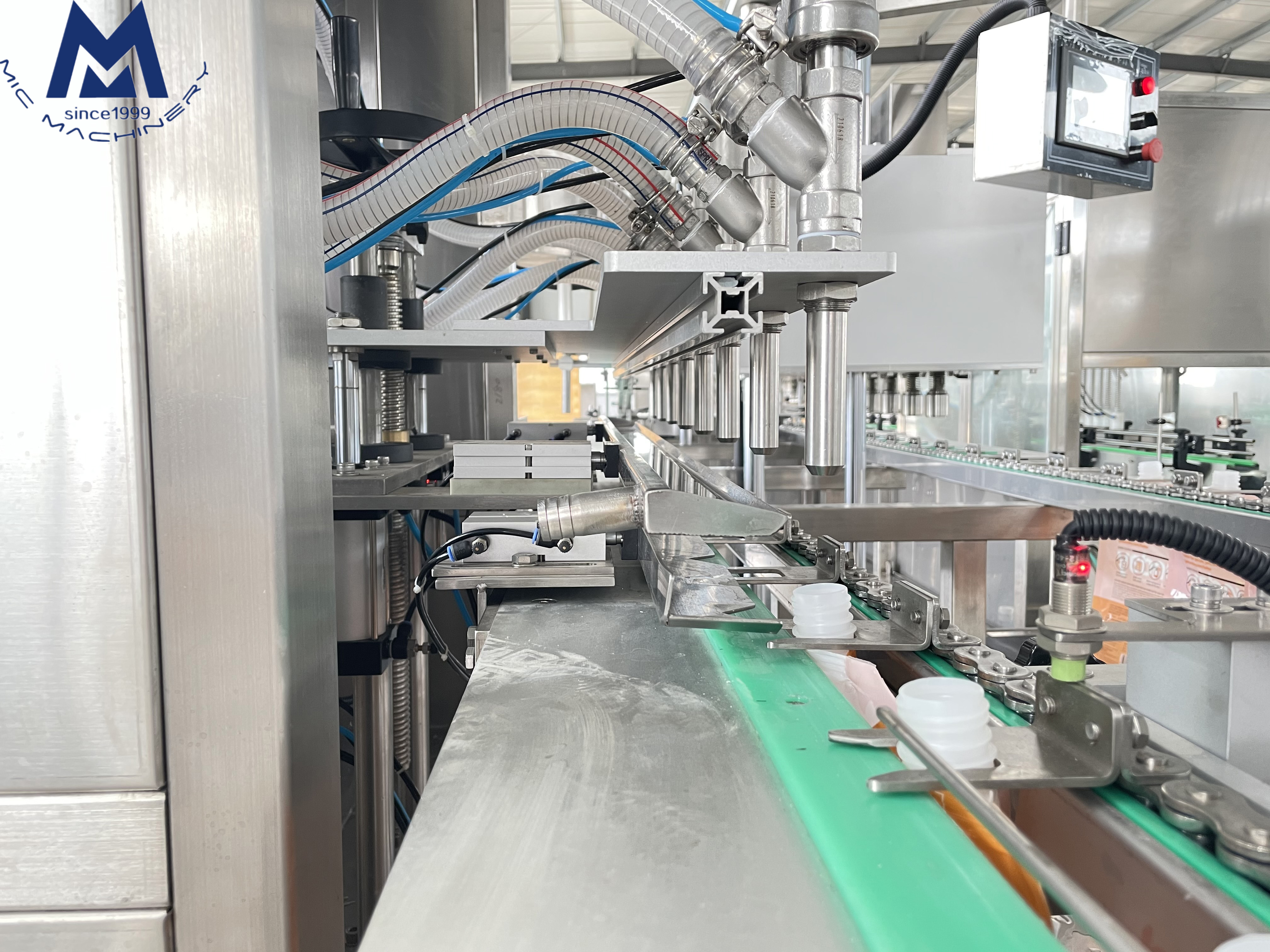

Automatic Cap Loading Tunnel and Photoelectric Detection

After filling, the chain conveyor will deliver pouches to cap loading station. When the pouches through this cap loading tunnel then the pouch mouth will be placed the plastic cap automaticlly. There is a photoelectric detection to detect each pouch’s mouth has cap or not. If there is pouch’s mouth doesn’t has cap then the machine will stop running and you need to put the caps on the mouth manually.

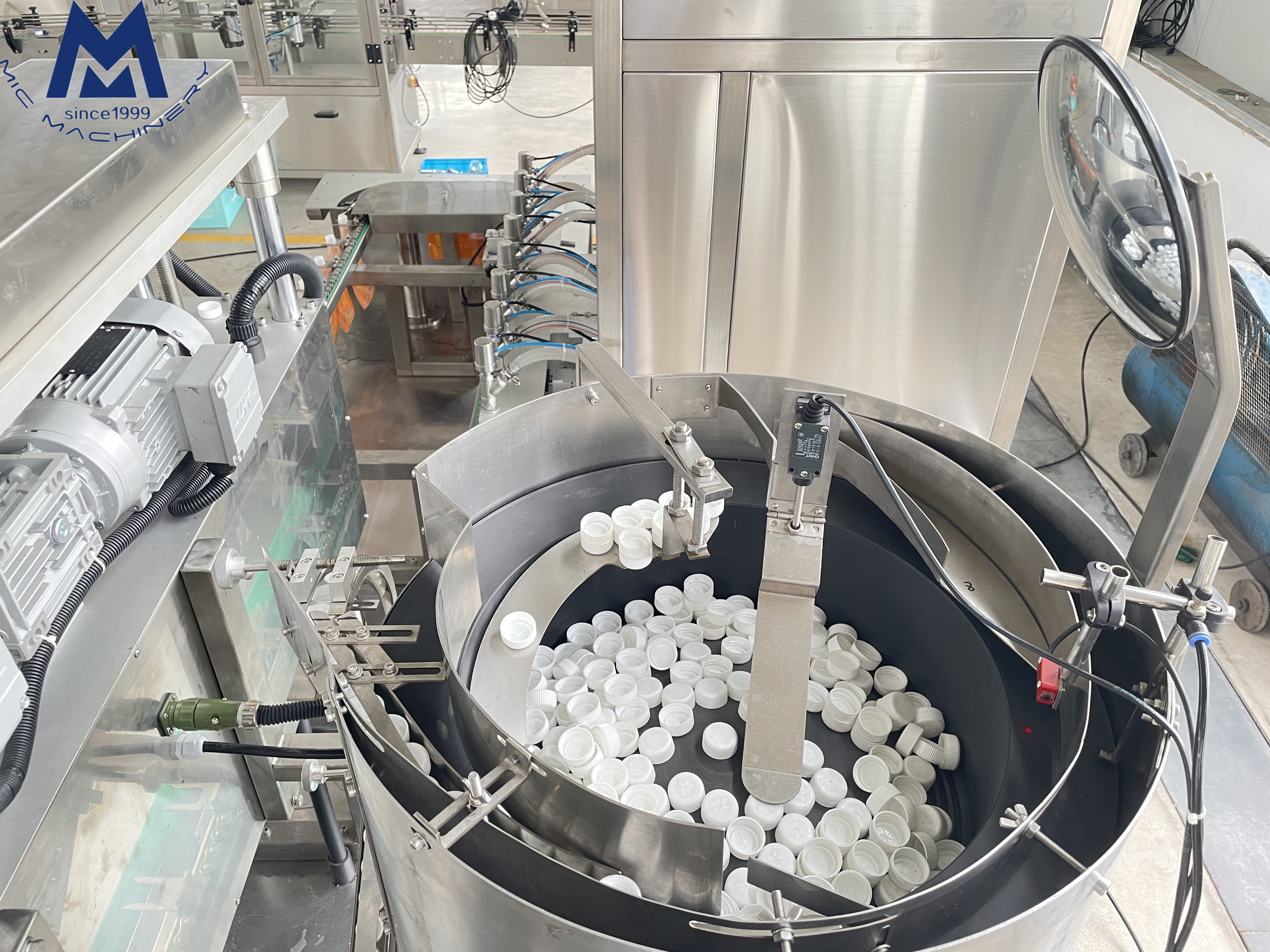

Automatic Centrifugal Type Cap Vibrating Plate

Just pouring the plastic caps on this cap vibrating plate then it will sorting and feeding the caps into the cap loading tunnel. There is a photoelectric detection to detect if the cap’s position is correct or wrong. If the cover is oriented incorrectly then it will be rejected into the vibrating plate by blowing then rearrange. We can also supply the cap feeding elevator to feed the caps into this cap vibrating plate to save the labor cost. The cap vibrating plate has great versatility for different size caps.

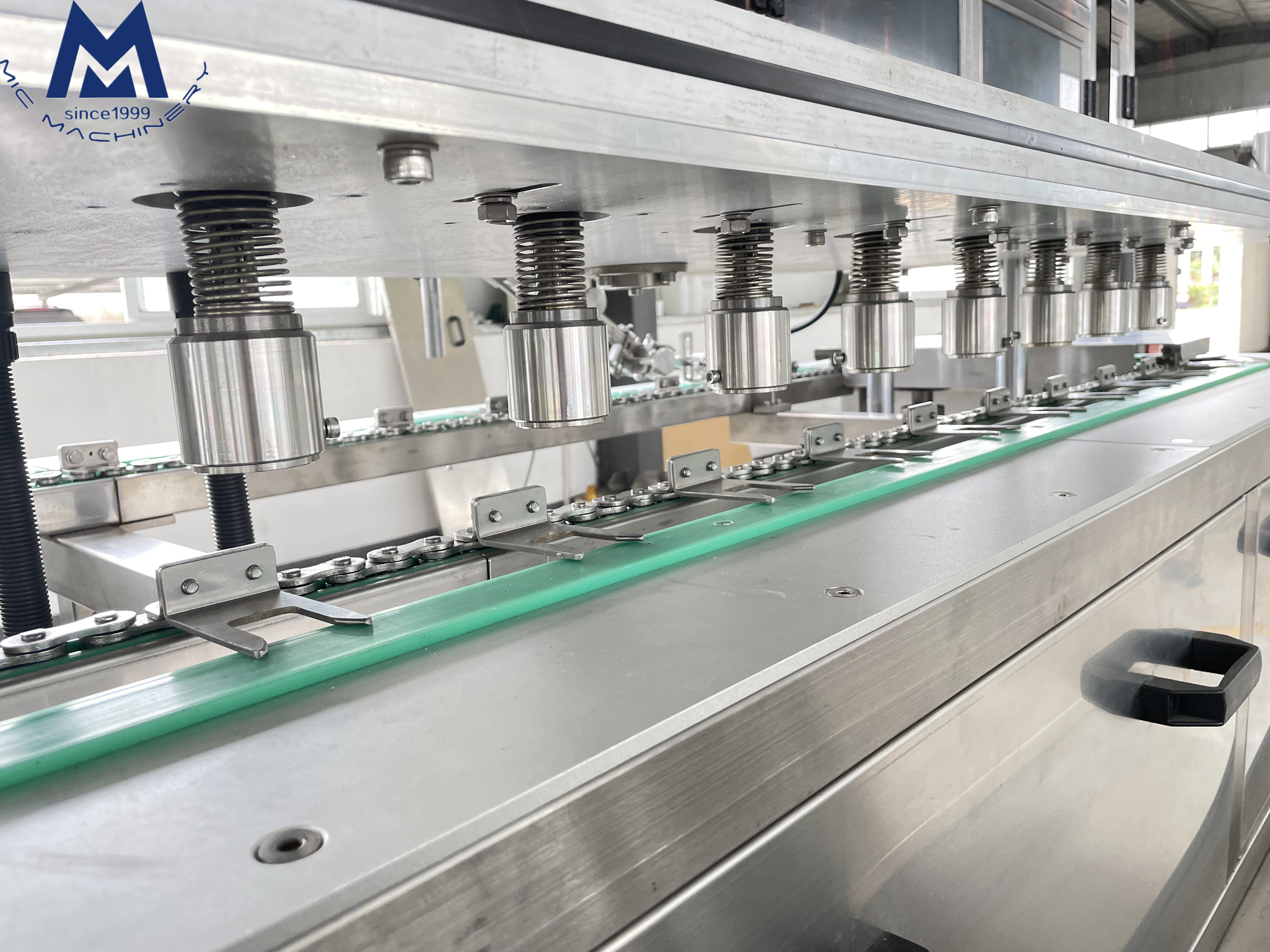

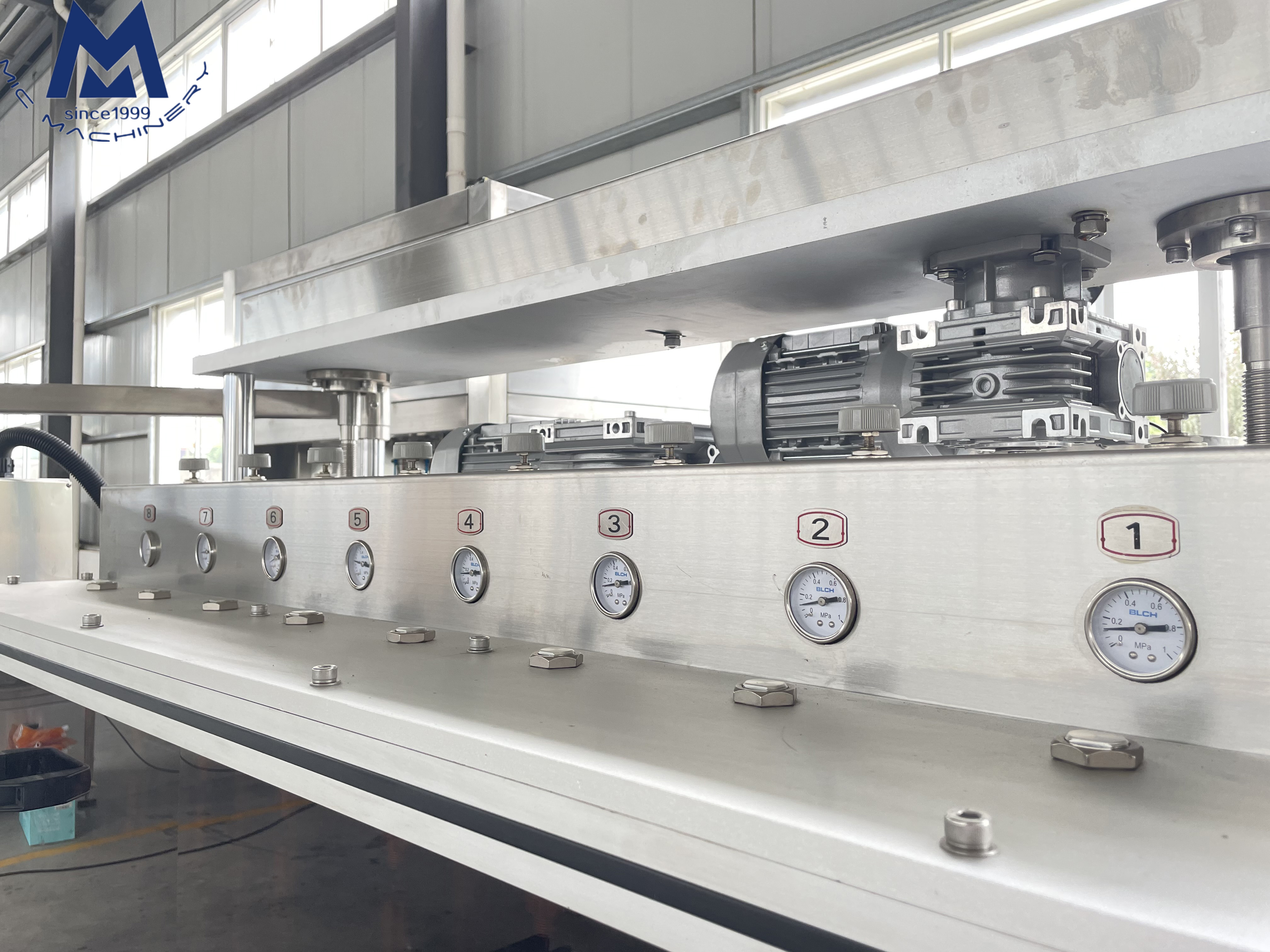

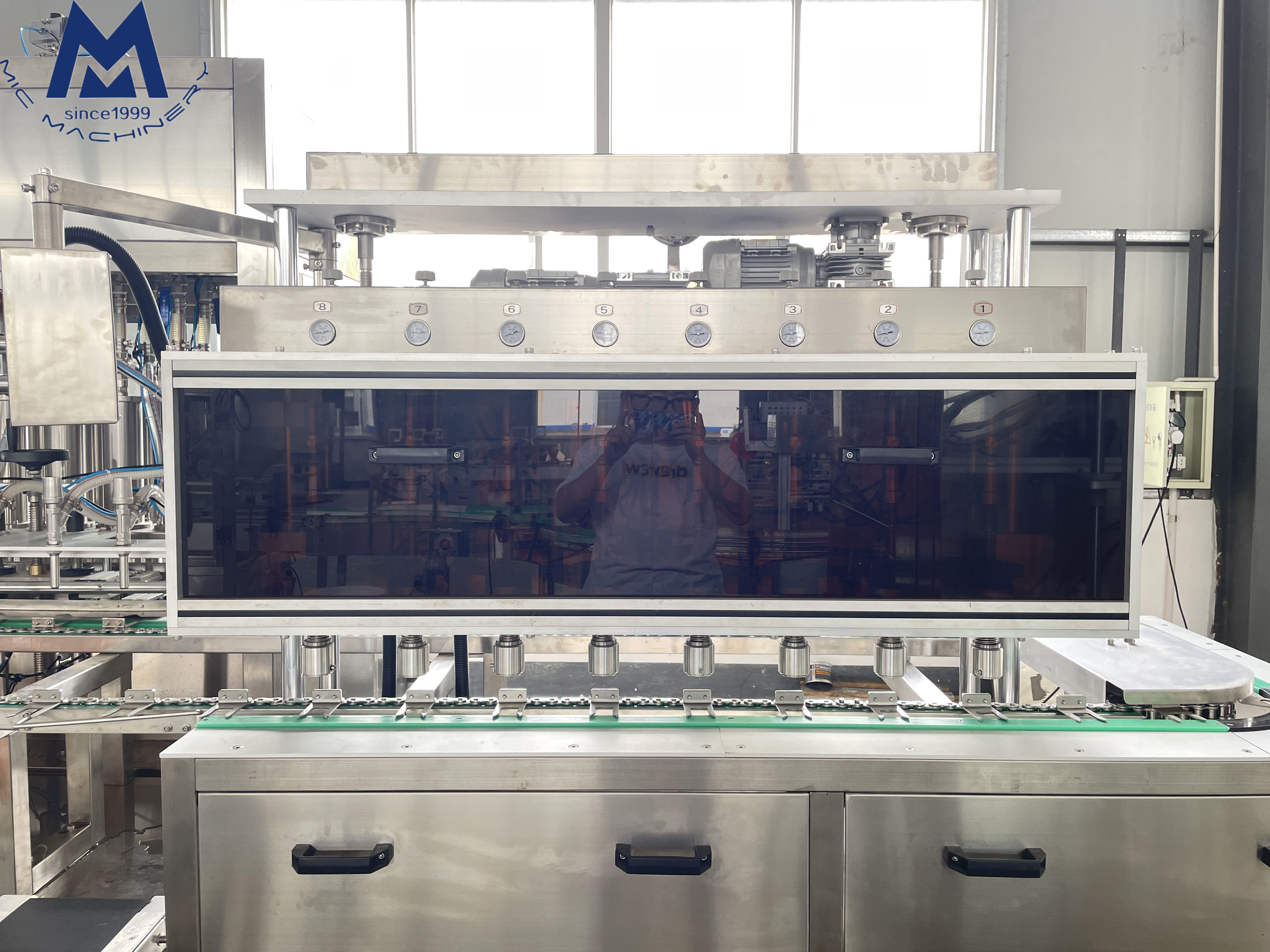

Automatic Cap Screwing Station

When the pouches placed the caps then it will be screwed tightly in this cap screwing station. The cap screwing torque can be adjusted inside the machine.

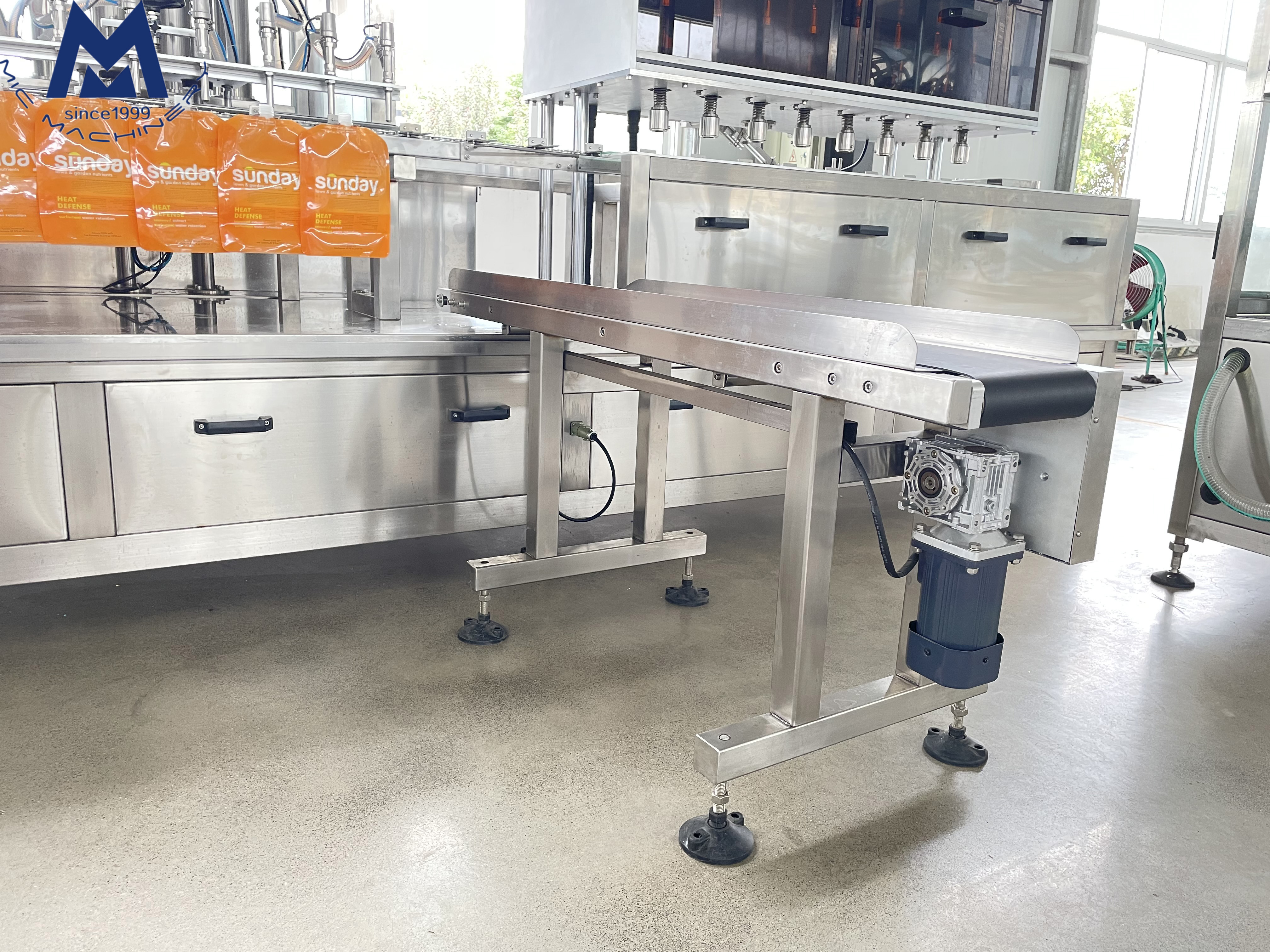

Product Output Belt Conveyor

The finished products will be discharged on this belt conveyor. And the operator can collect the products in here.

More Detailed Photos

Play Video about nespresso coffee capsule filling machine k cup sealing machine

Nespresso coffee capsule filling machine k cup sealing machine

Model	KFP-2
Type	Linear type
Filling heads	2 heads
Production capacity	4000-5000 capsules/hour
Filling volume	1-30g (adjustable)
Power	4.5KW
Air	0.7m³/MIN
Power source	220/380V 50HZ/60HZ
Weight	1300KG
Dimension	(L)3300(W)1500(H)2200(MM)

Type: Multi-Function Packaging Machine, Linear type
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other
Function: FILLING, Sealing
Application: Beverage, Chemical, Food, Medical
Packaging Type: K-CUP, Nespresso, Dolce Gusto, etc.

Packaging Material: Paper, Plastic, Metal
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 380v
Place of Origin: Shanghai, China
Dimension(L*W*H): 3300*1500*2200mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Other, Gear, Engine, Gearbox
Production Capacity: 4000-5000 capsules/hour
Filling heads: 2
Top capacity: 4000-5000 capsules/hour
Filling volume: 1-30g (Can be adjusted)
Error: ±0.01g
Air consumption: 0.7 m3 /min

Play Video about Automatic plastic cup filling and sealing machine food factory packaging machinery equipment for liquid water juice jam

Stand up spout sachet/pouch/bag filling capping machine

Model	BHJ-4
Nozzles	4
Packing speed	3200-4000 cups/h
Volume	20-500ml(can be adjustable)
Power	4.5KW
Voltage	380V/50hz
Air pressure	0.6 mpa
Air consumption	0.6 m³/min
Dimension	36008001650mm
Weight	1000kg

Type: Filling Machine
Applicable Industries: Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops, cup filling and sealing machine
Application: Beverage, Chemical, Food, mineral water cup filling and sealing machine
Packaging Type: cups

Packaging Material: Glass, Metal, Paper, Plastic, mineral water cup filling and sealing machine
Automatic Grade: Automatic
Driven Type: Pneumatic
Voltage: 380V/50HZ
Place of Origin: Shanghai, China
Dimension(L*W*H): 3600*800*1650MM
Weight: 1000 KG
Warranty: 1 Year
Key Selling Points: cup filling and sealing machine
Machinery Capacity: 4000BPH, Other
Filling Material: Other, Milk, Water, Oil, Juice
Filling Accuracy: ±1%
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Other, PLC, Gear, Gearbox, Engine
Filling nozzles: 4 nozzles
Production capacity: 4000 cups/hour
Filling volume: 50-500ml (can be adjusted)
12000 cups/hour: liquid, paste, powder and granule
Air consumption: 0.6 m3 /min
Temperature: 0-400 °C

Play Video about Automatic Liquid Standing Spout Pouch Filling and Capping Machine

Automatic Liquid Standing Spout Pouch Filling and Capping Machine

Pouch applications: Applies various type spout pouches, regular or irregular, flat or stand up pouch etc.

Material applications: Various liquid & sauces all could be packed, configured with different pumps.

Optional Features

Lid lifting system
CIP connection system
Upgrade the frame and structure to stainless steel
Protection Shield
Air Purification Device
Upgrade to a high-capacity pump

Standard Features

Featuring a frequency converting motorized system to enable excellent driving performance
Integrated PLC & HMI control, easy to operate and troubleshoot
Feedings, liquid dosing, fillings and spout cappings of premade spout pouches
Spouts are automatically cleaned after filling, enabling the appearance of packed products to be clean
Automate the sorting, precapping, and capping of caps

Type 4W-xxx	SFC-5-1	SFC-8-3
Dosing Method	Piston pumps	Piston pumps
Packaging Range(ml)	30-300 ml	30-300 ml
Filling Heads	5	8
Capping Heads	5	8
Packing Speed	40-75 pouches/min	64-120 pouches/min
Filling Accuracy	+/-0.5%-2%	+/-0.5-2%

Best Spout Pouch Filling and Capping Machine Manufacturers in China

Food-Packaging-Machine.com is the leading food packaging machine B2B marketplace in China, here you can find best thousands of spout pouch filling and capping machine manufacturers, suppliers & factories, all of them are verified by our professional team in China, we make sure that they are real and best manufacturers in China, contact us for the best spouted pouch machine manufacturers lists.

Automatic Filling Capping Machine for Spout Pouch

Our company provides Automatic Filling and Capping Machines for Spout Pouches. It is widely used for packing soymilk, jelly, yogurt, juice, mineral water, ice-cream, seasonings, edible oil, detergents, and powder products, such as coffee powder. Automatic stand up pouch filling and sealing machine and semi automatic spout pouch filling machine are made in China. Filling and capping machine for spouted pouches that can fill up to 20 pouches per minute, depending on packaging, product, and volume.

Pouch: Pre-made pouches that are completely sealed, shaped, and have a re-closable spout.

Spout: Without a cap, this spigot can be hung around the neck.

Mechanical Speed: It is possible to fill up to 20 pouches in a minute, depending on the operator’s skill, the diameter of the spout, the viscosity of the product, and the volume of the pouch. The actual speed depends on the test results with the original pouches and product.

Shanghai Joygoal Food Machinery Co., Ltd.

Your trustable spouted pouch filling and capping machine Manufacturer in China. Joygoal specializes in food machinery. Our company integrates research, development, manufacture, installation, and maintenance. Our company has advanced equipment, vast experience, highly qualified scientific researchers, as well as professional after-sales staff.
